LEFENG High-efficiency Grade A 120 Half-Cell Monocrystalline Silicone Photovoltaic Module 365~385W 166mm All Black Solar Panel PV Module

Short Description:

High conversion efficiency: The solar panel has a built-in monocrystalline silicone solar panel that can convert solar energy into electricity

Waterproof and durable: the solar panel is covered with EVA Film and Tempered Glass, which has good waterproof performance, can withstand harsh weather conditions, and is resistant to heavy cold and heat.

Materials: high-quality A-grade solar cells with novel shingle technology (overlapping). Surface made of hardened tempered solar glass with weatherproof coating; black corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30 cm long 4 mm² double insulated solar cable

Send email to us

Product Detail

Product Tags

Product Detail

— Product introduction:

• Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
• High energy conversion: solar panels can effectively absorb the radiation heat of solar energy, greatly improve photoelectric conversion efficiency, energy saving and environmental protection. To maximize the customer value by more power yield generation and less carbon emission
• Application: On-grid or off-grid for ecological houses, cottages, caravans, motorhomes, boats etc. for all needs around a self-sufficient and mobile power supply.

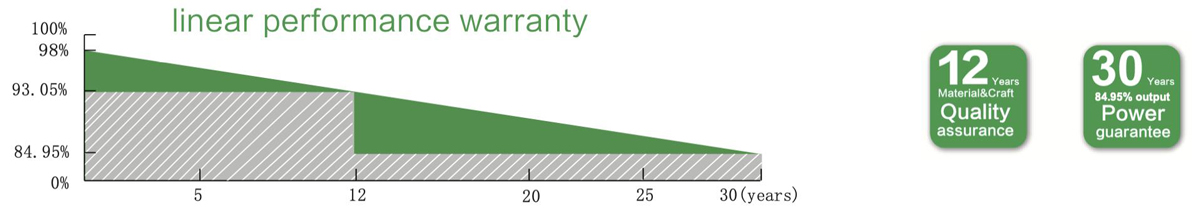

• Warranty: 12 years PV module product warranty and 30 years linear warranty

Electrical Parameters

Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)

Maximum Power(W)	365	370	375	380	385
Optimum Power Voltage(Vmp)	34.14	34.35	34.53	34.80	34.97
Optimum Operating Current(Imp)	10.69	10.77	10.86	10.92	11.01
Open Circuit Voltage(Voc)	40.83	41.08	41.28	41.59	41.79
Short Circuit Current(Isc)	11.38	11.47	11.57	11.63	11.73
Module Efficiency (%)	20.0	20.3	20.6	20.9	21.1
Tolerance Wattage(W)	0~+5
NMOT	43°C +/-3°C
Maximum System Voltage(VDC)	1500

Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)

Maximum Power(W)	280.41	284.25	288.08	291.93	295.77
Optimum Power Voltage(Vmp)	31.12	31.31	31.47	31.72	31.87
Optimum Operating Current(Imp)	9.01	9.08	9.15	9.20	9.28
Open Circuit Voltage(Voc)	37.70	37.93	38.11	38.39	38.58
Short Circuit Current(Isc)	9.69	9.76	9.84	9.89	9.98

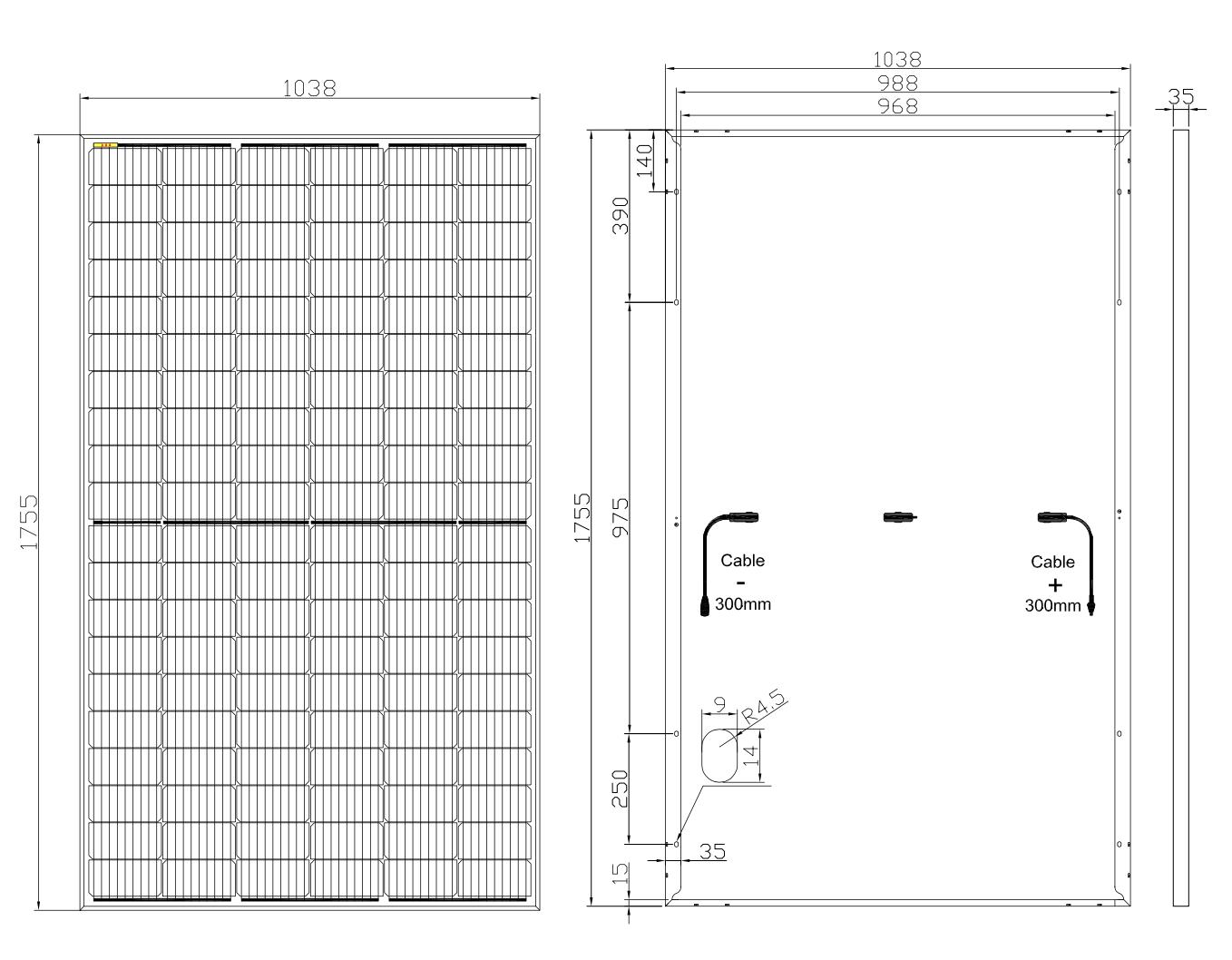

Components & Mechanical Data

Solar Cell	166*83 Mono
Number of Cell(pcs)	6102
Size of Module(mm)	1755103835
Front Glass Thikness(mm)	3.2
Surface Maximum Load Capacity	5400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	20.0
Junction Box Type	Protection class IP68,3 diodes
Cable & Connector Type	300mm/4mm²；MC4 Compatible
Frame(Material Corners,etc.)	35# Black
Temperature Range	-40°C to +85°C
Series Fuse Rating	20A
Standard Test Conditions	AM1.5 1000W/m² 25°C
