LEFENG High-efficiency Grade A 144 Half-Cell Bifacial PV Module 525~550W Monocrystalline Silicone Photovoltaic Module 182mm Waterproof Solar Panel
Product Detail
— Product introduction:
• By using bifacial PERC cells and double glass technology, the total power generation of bifacial double glass module can increase up to 25%~30%.
• Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
• To maximize the customer value by more power yield generation and less carbon emission
• Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30cm long 4mm² double insulated solar cable
• Application: On-grid or off-grid for ecological houses, cottages, caravans, motorhomes, boats etc. for all needs around a self-sufficient and mobile power supply.

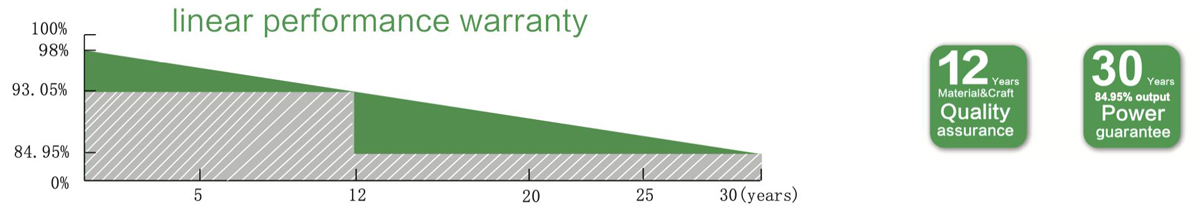

• Warranty: 12 years PV module product warranty and 30 years linear warranty
Electrical Parameters
Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)
| Maximum Power(W) |
530 |
535 |
540 |
545 |
550 |
| Optimum Power Voltage(Vmp) |
41.38 |
41.58 |
41.79 |
42.00 |
42.21 |
| Optimum Operating Current(Imp) |
12.81 |
12.87 |
12.92 |
12.98 |
13.03 |
| Open Circuit Voltage(Voc) |
49.43 |
49.68 |
49.93 |
50.18 |
50.43 |
| Short Circuit Current(Isc) |
13.64 |
13.70 |
13.76 |
13.82 |
13.88 |
| Module Efficiency (%) |
20.5 |
20.7 |
20.9 |
21.1 |
21.3 |
| Tolerance Wattage(W) |
0~+5 |
||||
| NMOT |
43°C +/-3°C |
||||

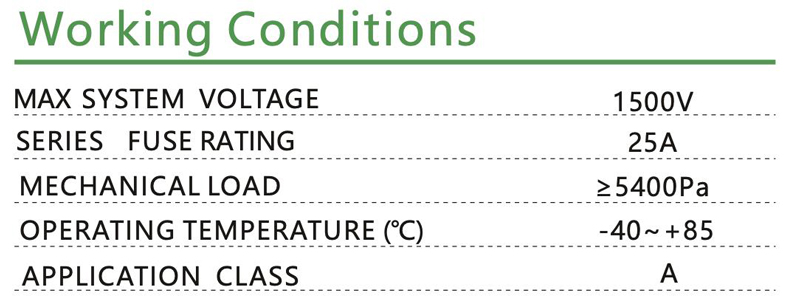

| Maximum System Voltage(VDC) |
1500 |
||||
Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)
| Maximum Power(W) |
407.16 |
411.01 |
414.84 |
418.68 |
422.52 |
| Optimum Power Voltage(Vmp) |
37.72 |
37.90 |
38.09 |
38.28 |
38.48 |
| Optimum Operating Current(Imp) |
10.79 |
10.84 |
10.89 |
10.94 |
10.98 |
| Open Circuit Voltage(Voc) |
45.63 |
45.86 |
46.09 |
46.32 |
46.55 |
| Short Circuit Current(Isc) |
11.55 |
11.60 |
11.65 |
11.70 |
11.75 |
Different rear side power gain
|
Pmax Gain |
Pmpp(W) |
||||
|
5% |
557 |
562 |
567 |
572 |
578 |
|
10% |
583 |
589 |
594 |
600 |
605 |
|
15% |
610 |
615 |
621 |
627 |
633 |
|
20% |
636 |
642 |
648 |
654 |
660 |

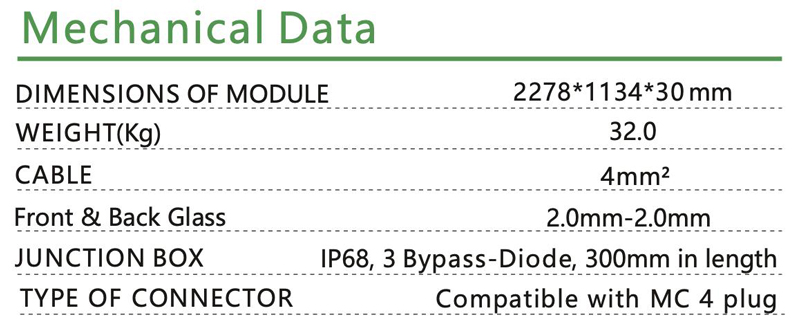

Components & Mechanical Data
| Solar Cell | 182*91 Mono |
| Number of Cell(pcs) | 6*12*2 |
| Size of Module(mm) | 2278*1134*30 |
| Front Glass Thikness(mm) | 2.0 |
| Back Glass Thikness(mm) | 2.0 |
| Surface Maximum Load Capacity | 5400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 32.0 |
| Junction Box Type | Protection class IP68,3 diodes |
| Cable & Connector Type | 300mm/4mm2；MC4 Compatible |
| Frame(Material Corners,etc.) | 30# |
| Temperature Range | -40°C to +85°C |
| Series Fuse Rating | 25A |
| Standard Test Conditions | AM1.5 1000W/m2 25°C |
Temperature Coefficients
| Temperature Coefficients of Isc(%)℃ |
+0.046 |
| Temperature Coefficients of Voc(%)℃ |
-0.266 |
| Temperature Coefficients of Pm(%)℃ |
-0.354 |
Packing
| Module per Pallet | 36PCS |
| Module per Container(20GP) | 180pcs |
| Module per Container(40HQ) | 720pcs |

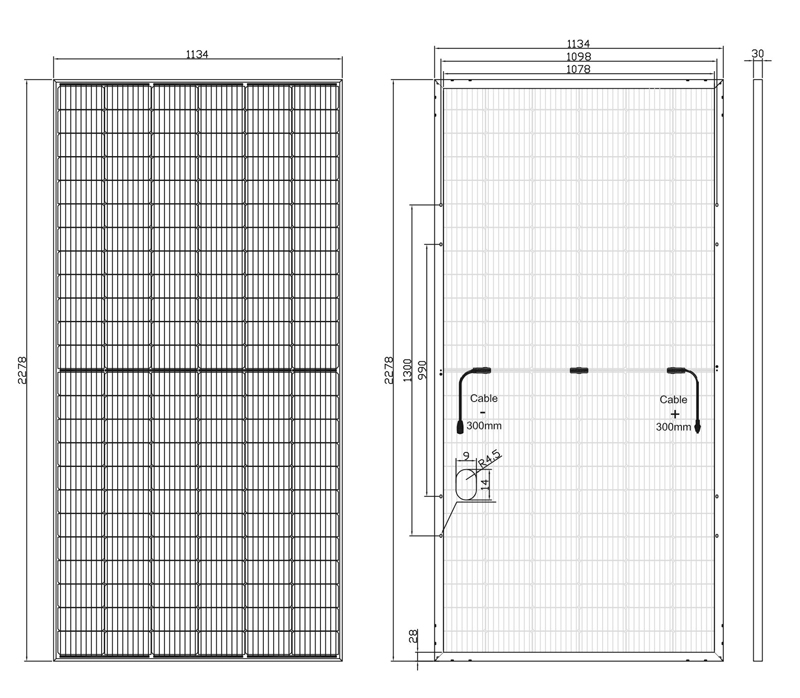

Engineering Drawings
