LEFENG Weatherproof High-efficiency Wholesale Grade A 132Half-Cell Monocrystalline Silicon Photovoltaic Module TUV Certificated 700-720W 210mm N-type Solar Panel PV Module

Short Description:


Product Detail

Product Tags

—High conversion efficiency: The solar panel has a built-in monocrystalline silicone solar panel that can convert solar energy into electricity



—Waterproof and durable: double-layer tempered glass which has good waterproof performance, can withstand harsh weather conditions, and is resistant to heavy cold and heat.



—Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30cm long 4mm² double insulated solar cable





Product Detail



—Product introduction:

●  Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance

●  High energy conversion: solar panels can effectively absorb the radiation heat of solar energy, greatly improve photoelectric conversion efficiency, energy saving and environmental protection. To maximize the customer value by more power yield generation and less carbon emission

●  High-quality workmanship, high reliability, photovoltaic module with contact solar cells; Thanks to the double frame made of anodized aluminum, it is particularly scratch-resistant; The crystalline cells are embedded in a 2.0 mm thick, crystalline glass with low iron oxide and in a high-strength double layer film with high strength

● Application: Mainly applied to centralized large-scale ground-based power stations or rooftop distributed power stations

Warranty: 15 years PV module product warranty and 30 years linear warranty

41

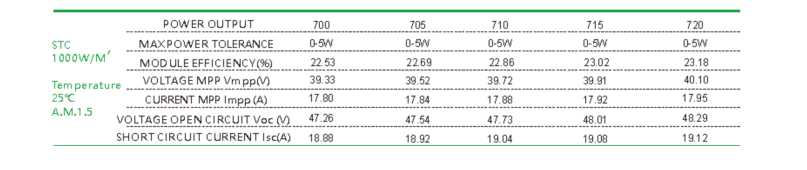

Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)

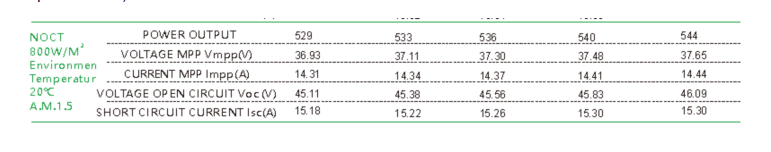

Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)

42

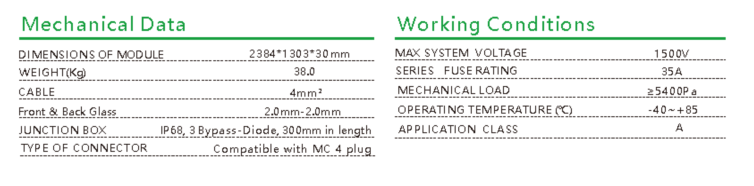

Components & Mechanical Data

43

Temperature Coefficients

Temperature Coefficients of Isc(%)℃

+0.045

Temperature Coefficients of Voc(%)℃

-0.250

Temperature Coefficients of Pm(%)℃

-0.290

Packing

Module per Pallet 18PCS
Module per Container(20GP) 144pcs
Module per Container(40HQ) 648pcs
44
asd (5)
22
17
18
